RoadDXF
Draw a box, hit generate, and get a professional-grade DXF file for AutoCAD. Made for make ready drafters and utility permit engineers tired of hand-tracing roads.
Cost / License
- Freemium (Subscription)
- Proprietary
Platforms
- Online
Features
- Based on OpenStreetMap
RoadDXF News & Activities
Recent activities
RoadDXF information
Licensing
Proprietary and Freemium product.Pricing
Subscription ranging between $19 and $149 per month + free version with limited functionality.Alternatives
2 alternatives listedSupported Languages
- English
What is RoadDXF?
RoadDXF is a web app for make ready drafters, utility engineers, OSP designers, and CAD drafters who need to trace roads, streets, parcel lines, APNs, situs addresses, and right of way (ROW) into AutoCAD for permit base maps. You draw a box on a map, click Generate, and get a production-ready DXF in seconds. No hand-tracing, no GIS software, no AutoCAD plugin, no ArcGIS license.

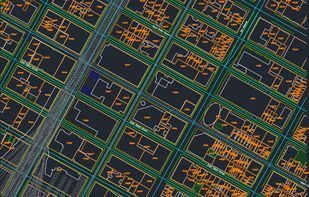

The DXF lands in your editor with named layers (ROADS-HIGHWAY, ROADS-LOCAL, PARCELS, APNS, ADDRESSES, BUILDINGS) so you can freeze or delete what you don't need. Parcel data comes straight from official county and state assessor GIS services. About 88% of the US population is in a fully-covered area.
