GearTrax

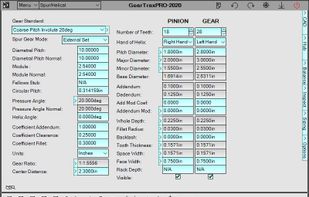

GearTrax is intuitively easy to use for the designer with limited gear experience yet powerful enough for the gear expert. The animation window shows the spur/helical gear mesh which updates as the data is changed. It is extremely useful in understanding how changes to the gear parameters reflect on the gear mesh.

GearTrax™ is more than a library program. Each part model is created with its specific requirements just as a designer would, but rather than taking hours or days, the part is created in seconds. GearTrax creates solid models of spur and helical gears, bevel gears, worm gears, involute splines, timing belt pulleys, chain sprockets, V-belt pulleys, cycloidal drive gears and elliptical gears. GearTrax™ also integrates with Excel to create data sheets.

Some important information about GearTrax

• Involute splines.What are involute splines?Involute splines are commonly used to attach a gear to a shaft. Normally, involute splines are made in pairs, an external spline and an internal spline.
• Internal gears. Creating internal gear sets has been improved with GearTrax.It is easy to create a set of gears, one internal and one pinion gear as a matched set.
• A spur gear tooth and involute spline tooth geometry can now be added to any sketch in CAD.This makes it very easy to add gear teeth to any part or multiple teeth geometry to a single part.
• Spur and helical gear teeth are cut-extruded rather than the tooth feature boss-extruded on a base feature. A number of customers asked for this so they could suppress the tooth pattern and still have the gear "blank" to check for interference. Also, some thought it would nice if the gear model more resembled the manufacturing process.
• Adding mates to GearTrax products is now much simpler.All products are created with the center of the gear, pulley etc., being on a plane.In other words, the length of the belt or chain center will now be centered on a plane.This is a big improvement for mating parts in an assembly.
