Turn G-code is a desktop program for CNC lathe operators who want a ready program for a typical turning job in a couple of minutes, without writing G-code by hand and without a full CAM system.
You choose a cycle, enter the dimensions, feeds and speeds in a simple form, check the tool path in the built-in 2D simulator and save a ready-to-run program. It is made for LinuxCNC lathes: small shops, home-built and converted machines, training and hobby lathes.

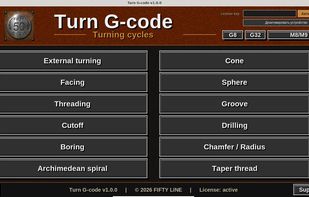

12 machining cycles:

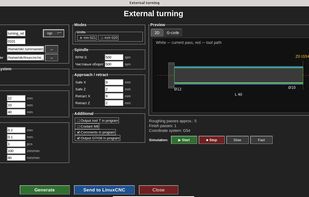

- OD turning and facing
- Threading: external/internal, right/left hand, multi-start, adjustable run-in and run-out
- Tapered threads (the thread follows the full length of the taper)
- Taper turning (external/internal)

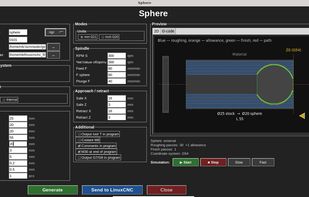

- Sphere, including concave profiles such as pulley grooves
- Grooving, drilling, boring and parting off
- Chamfer/radius (external/internal, front/back)

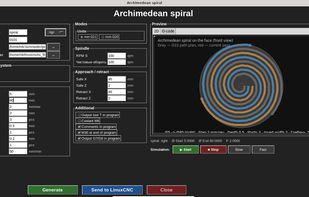

- Archimedean spiral (face spiral groove or thread)
Output you can adjust to your control and habits:
- G7/G8 (diameter or radius mode) with one switch for all cycles
- G32 or G33 threading syntax with a selectable pitch address (I, K or F)
- Coolant M-codes, tool numbers, comments and M30 can be turned on or off
- Millimeters and inches
- English and Russian interface
15-day free trial with no key and full functionality, then a one-time Lifetime licence for $99 — no subscription, all future updates, up to 2 computers per key.
Free online tools, no sign-up: an OD turning G-code generator that runs in the browser and 14 lathe calculators (threads, RPM, tapers, ISO fits and more) on turngcode.com.
