Xcos
Xcos is a graphical editor to design hybrid dynamical systems models. Models can be designed, loaded, saved, compiled and simulated.
- Free • Open Source
- Mac
- Windows
- Linux
What is Xcos?
Xcos is a graphical editor to design hybrid dynamical systems models. Models can be designed, loaded, saved, compiled and simulated.
Features

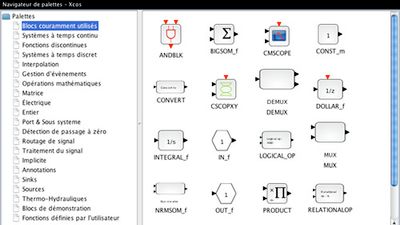

Palettes Browser
All Xcos standard blocks grouped by categories (signal processing, electrical, hydraulics, derivative, integral, etc.).
Editor
To design flow charts representing a dynamic system made of blocks defined in palettes.
Compiler / Simulator
Simulation of complex systems - discrete, continuous, defined by symbolic equations (Modelica), etc.. and hybrid systems.
