Astah System Safety

 Like

Dedicated MBSE and safety analysis tool for safety-critical systems, supporting SysML, STAMP/STPA, GSN/D-Case, ASAM SCDL and UAF, with built-in AI Chat Copilot.

SysML block definition diagram of a delivery robot in Astah System Safety, created with AI Chat Copilot, showing parts, value properties with units, and sensor specializations.

Cost / License

  • Subscription
  • Proprietary

Since

  • Since 2025

Platforms

  • Windows
  • Mac
UML sequence diagram generated with AI Chat Copilot in Astah System Safety, showing the message flow between objects.
SysML block definition diagram of a delivery robot with parts and value properties, created with AI Chat Copilot.
+5
UML use case diagram for an online shop in Astah System Safety, generated with AI Chat Copilot and refined by hand, showing actors, a system boundary, and include and extend relationships.
Alternatives
0likes
0alternatives
0articles
Save

Features

Properties

Features

Highlights All activities

Astah System Safety News & Activities

Recent activities

Astah System Safety information

Astah System Safety was added to AlternativeTo by Satomi Joba on and this page was last updated .

No comments or reviews, maybe you want to be first?

What is Astah System Safety?

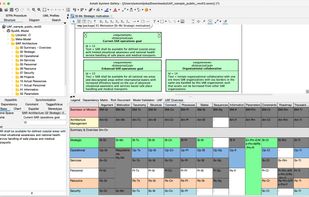

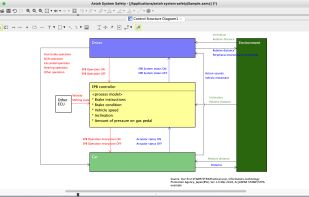

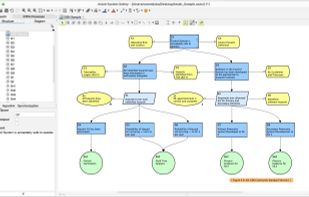

Astah System Safety is a robust modeling environment tailored for engineers and architects working on safety-critical systems in sectors like automotive (ISO 26262, SOTIF), aerospace, railways, defense, robotics, healthcare, and industrial automation. It combines SysML support with safety-focused methodologies including: • STAMP/STPA: Control structure diagrams, precondition, loss, unsafe control action (UCA), loss scenario and countermeasure tables • GSN / D-Case: Build structured assurance cases and safety arguments, with conversion from SysML blocks and requirements and SACM XMI import/export • ASAM SCDL: Design and analyze ISO 26262 safety concepts with dedicated diagrams, including ASIL assignments • UAF (Unified Architecture Framework) via plug-in

Since version 11, it includes AI Chat Copilot and a local MCP server that lets external AI agents such as Claude Desktop and Claude Code work with Astah models. The AI features use your own AI service API key.

It also offers requirements tables, feature modeling, Excel/XML import-export, SysML-to-STPA conversion, traceability between models, OMG XMI 2.5 and Cameo Systems Modeler import/export, and collaboration features (file comparison, merging). It has a clean interface and scripting/API access, and runs on Windows and macOS. A SysML v2 editor for Visual Studio Code is included with a paid license. A 40-day free trial is available.
