Karnaugh Studio
1 like
Karnaugh Studio is a graphical editor for truth function design and minimization using the Karnaugh mapping method. It supports performing both manual and fully automatic minimization on up to 32 functions in a single project with a maximum of 8 input variables.
Cost / License
- Free
- Proprietary
EUPlatforms
- Windows
Features
- Import CSV Data
- Image exporting
- Export to CSV
- Boolean operations
Tags
- karnaugh-map
- boolean-function
- karnaugh
- minimize-boolean-function
- karnaugh-minimizer
- logic
- function-minimization
- minimize-function
Karnaugh Studio News & Activities
Highlights All activities
Recent activities
No activities found.
Karnaugh Studio information
Developed by
Daniel Ševcík Licensing
Proprietary and Free product.Alternatives
3 alternatives listedSupported Languages
- English
No comments or reviews, maybe you want to be first?
Post comment/reviewWhat is Karnaugh Studio?

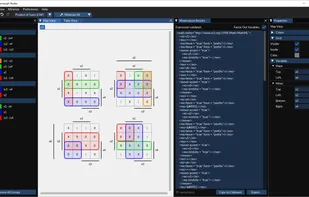

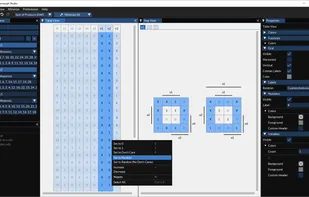

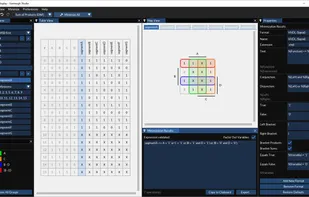

Karnaugh Studio is a graphical editor for truth function design and minimization using the Karnaugh mapping method. It supports performing both manual and fully automatic minimization on up to 32 functions in a single project with a maximum of 8 input variables. The results can be displayed, exported, and validated in a wide variety of formats, including many programming and markup languages. Besides that, truth tables, as well as Karnaugh maps, can be exported as images.
