GRBL- Plotter
1 like

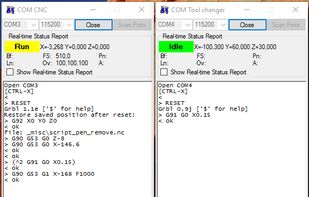

A GCode sender (not only for lasers or plotters) for up to two GRBL controller. SVG, DXF, HPGL import. 6 axis DRO.
Cost / License
- Free
- Open Source
EUPlatforms
- Windows
Features
No features, maybe you want to suggest one?
Tags
- plotter
- hpgl
- gcode-generation
- SVG
- Computer Numerical Control
- pen-plotter
- laser
- laser-cutting
- laser-engraver
- gcode-sender
- gcode
- grbl-plotter
- marlin
- tangential-knife
- dxf
- grbl
GRBL- Plotter News & Activities
Highlights All activities
Recent activities
POX added GRBL- Plotter as alternative to Rayforge
dleeuw added GRBL- Plotter as alternative to FRBL Slicer
stephen_campbell added GRBL- Plotter as alternative to gSender
Rafoul added GRBL- Plotter as alternative to NC-Corrector
GRBL- Plotter information
Developed by
svenhb Licensing
Open Source (GPL-3.0) and Free product.Written in
Alternatives
17 alternatives listedSupported Languages
- English
- Chinese
- German
- Spanish
- French
- Czech
- Italian
- Portuguese
- Polish
- Turkish
- Arabic
- Japanese
- Russian
AlternativeTo Categories
Photos & Graphics, System & HardwareGitHub repository
- 812 Stars
- 191 Forks
- 16 Open Issues
- Updated
No comments or reviews, maybe you want to be first?
Post comment/reviewWhat is GRBL- Plotter?

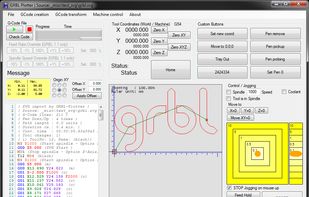

GRBL-Plotter is a graphic converter and gcode sender for all purposes. The main focus is on the post-processing of vector graphics, the specialty is the preparation of the generated Gcode, which is based on properties of the imported graphics, such as Layer, pen color or pen thickness, and can be sorted:
- Import of SVG, DXF, HPGL, CSV, Gerber

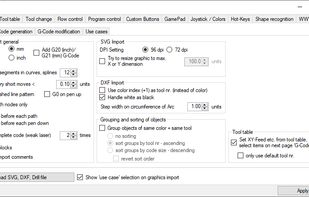

- Possible modification of the graphic during the import:
- Resize to given dimension (SVG)
- Offset origin to 0;0
- Sort paths by shortest distance
- Clipping and tiling of the graphic
- Hatch fill of closed paths
- Pen up/down can be implemented as:
- Z-axis
- RC-Servo (using spindle PWM)
- Laser (Spindle on/off)
- Or define individual commands
- Possible modification of the generated GCode:
- Offset, Mirroring, Rotation, Scaling
- Sorting and delete of code blocks
