EdiLus

A SMART structural calculations software? Yes, even a professional solution for structural engineering calculations can be simple and convenient.

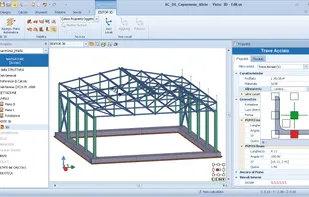

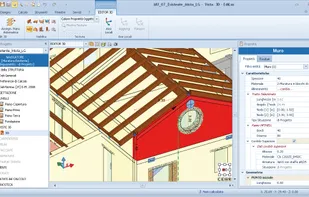

Edilus is a structural calculation software with BIM technology. Model input is accomplished using 3D objects that represent the structural members such as beams, columns, walls, slabs… A simple drawing of the structure is sufficient to provide the necessary data input for the FEM solver with nodes, loads, constraints… this makes everything really SMART.

The BIM input allows you to instantly define the strength characteristics of the objects and their spatial location. Special magnetic grids make spatial input for objects very rapid and precise. Building up even the most complex of structures will seem as simple as playing a game.

EdiLus can offer a unique working experience by means of the integration of all structural analysis stages in a single software. Having an integrated finite element solver, avoids having to separate the structural elements input, calculation and results analysis phases. The designer has the great advantage of being able to adopt and check various technical solutions and consistently achieve the best result. The FEM solver solves the most varied geometric structures and sizes with limit state checks.

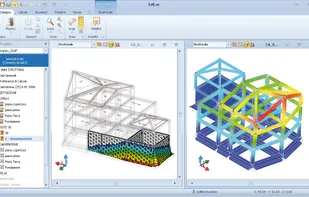

EdiLus can even represent the calculation results directly on the BIM objects of the structural members. On each object you can view tensions and strains and immediately get a quantitative/qualitative analysis of the entire facility as a whole.

After completing the BIM model input, the calculation performed by the solver integrated into the software together with a detailed analysis and implementation of the relating changes, you can quickly move on to printing. The technical calculation reports and drawing models with all construction details of each element of the structure are automatic. The structural engineer can take care of each element with specific program tools.
